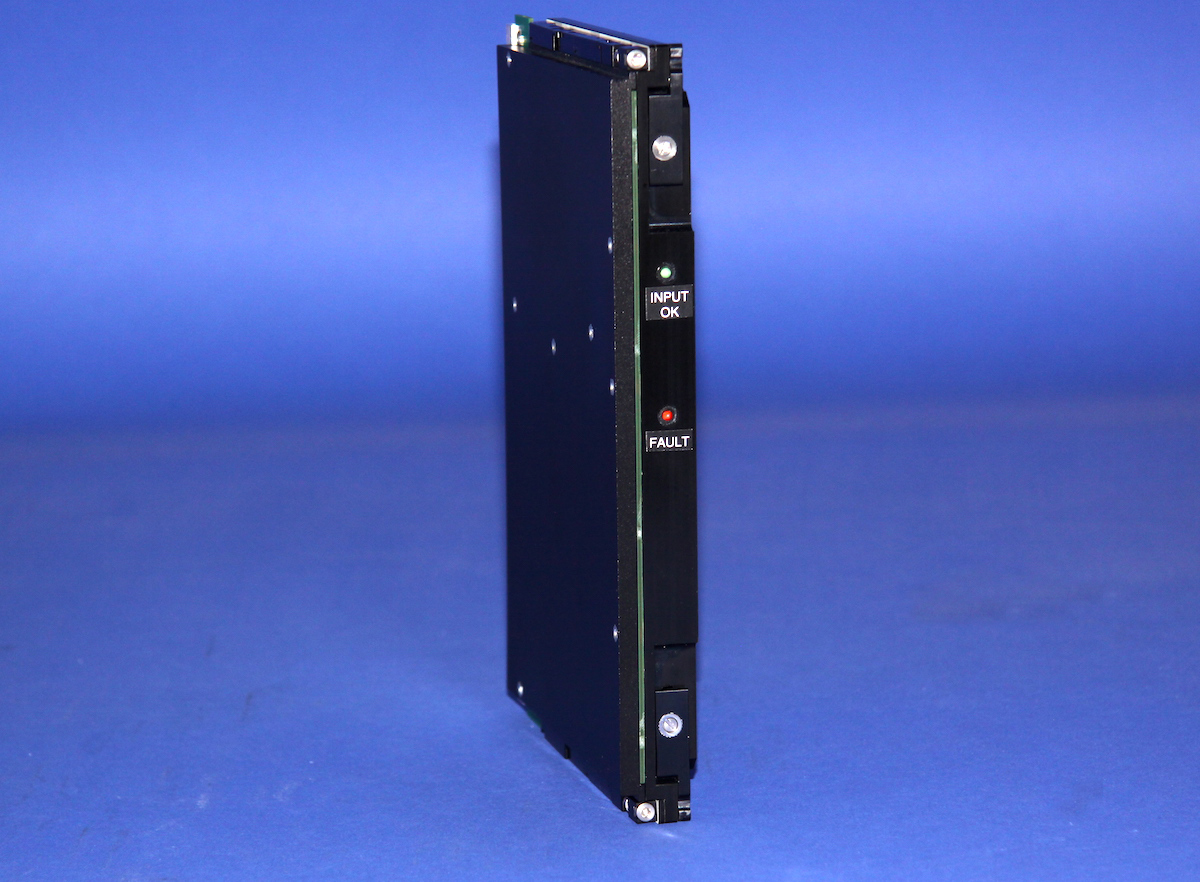

VPX Series Overview

Our VPX product line offers proven reliability to support mission-critical electronics. From aircraft surveillance and guided missile destroyers to mobile radars, these feature-rich workhorses provide unparalleled performance and reliability.

Key Features:

Ruggedized Mechanical Design
High Power Density, up to 1500 Watts
I²C per VITA 46.11 System Management Bus
N+1 Redundant with Internal Oring FETS/Diodes
Customized Input/Output Configurations Available
VITA 62 Card Guide Style Conduction & Convection Cooled
Side Covers Support Two-Level Military Maintenance Requirements

Conduction Cooled

Single Phase Vac Input per Mil-Std-1399 Data Sheets:

3-Phase Vac Input per Mil-Std-1399, Grounded, Data Sheets:

3-Phase Vac Input per Mil-Std-1399, Ungrounded, Data Sheets:

3-Phase Vac Input per Mil-Std-704 Data Sheets:

28 Vdc Input per Mil-Std-704 Data Sheet:

270 Vdc Input per Mil-Std-704 Data Sheets:

Convection Cooled

Single Phase Vac Input Data Sheets:

3-Phase Vac Input Data Sheets:

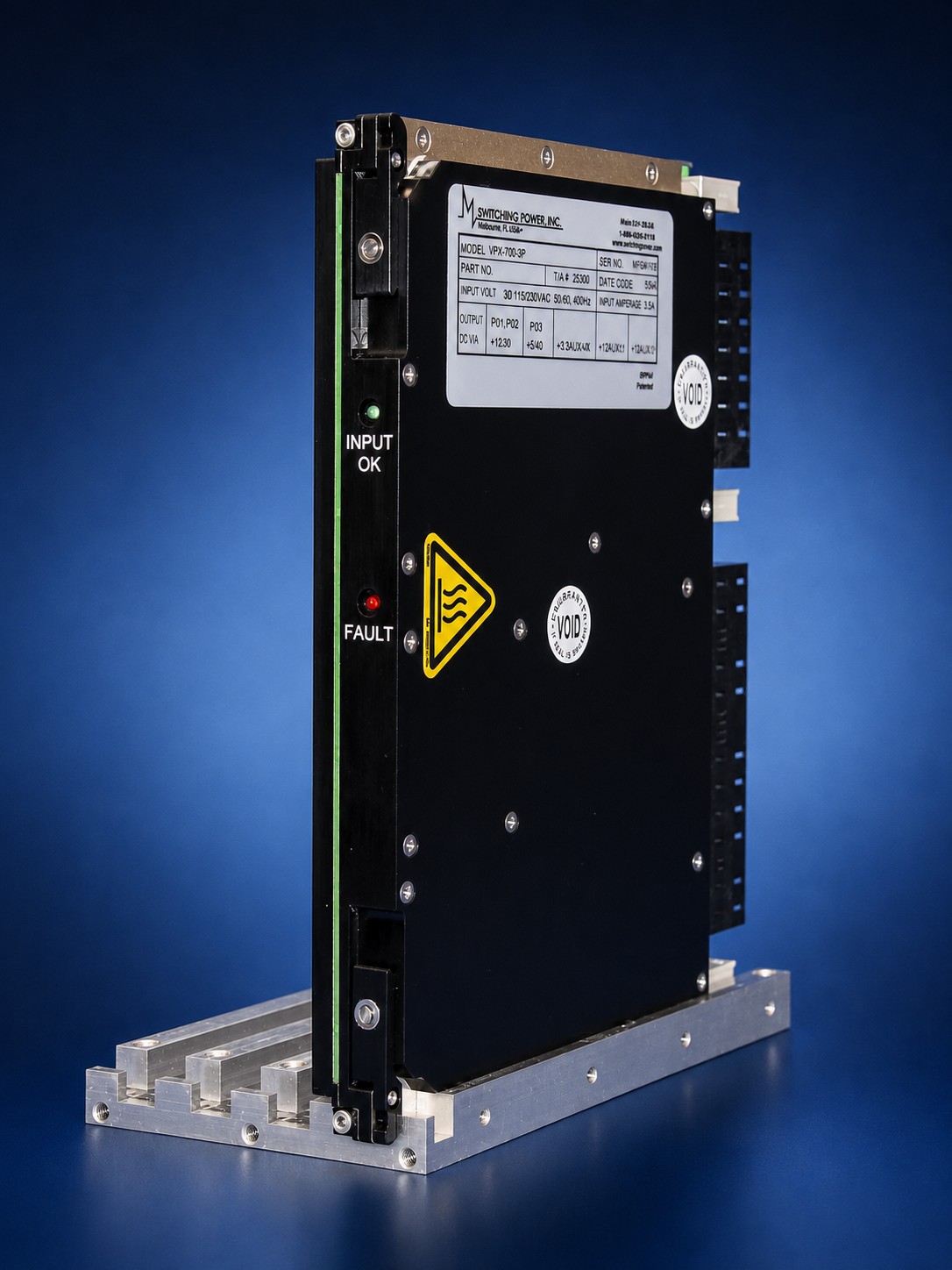

6U, 700W, Multi-Output: VPX-700-3P-CONV-10HP

Application Notes

VPX Signal Functions Data Sheets:

VPX Series (Vac & Vdc inputs): VPX Signal Data Sheet

I²C Data Sheets:

Connect with Our Engineering Team

Reach out to discuss your project specifications, and we'll provide tailored solutions that meet your mission critical needs.
